One Touch Five Effects!!!
(Multi-function)
(UHF RFID & 1D & 2D & QR Code & USB Reader)
- New Paradigm of Auto-ID Technology
- Exceed the Limits of PDA Technology
RFID & Barcode Recognition
- Functions
- Barcode - 1D, 2D, QR
RFID-900Mhz(UHF-World Wide)
- Portable Benefit

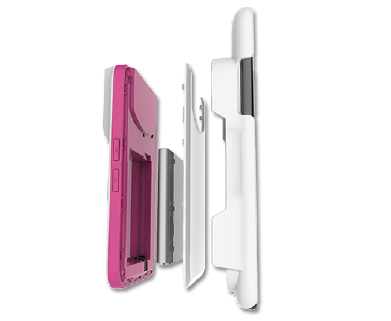

- All in One hard Case

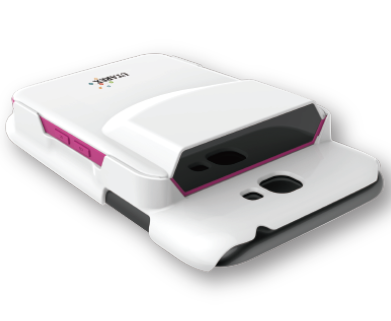

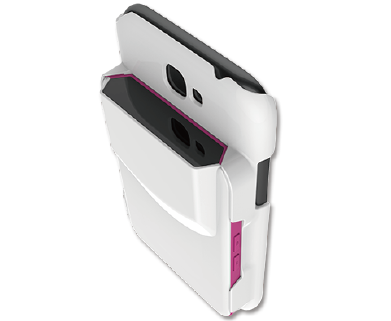

For Connection SmartPhone
with Scanner
- Effect
- Best Performance
Handiness
Slimple Paring with SmartPhone
RFID Specification
| Operating Frequency | 917~923Mhz(Korea New Frequency)*Available World Wide* |
|---|---|
| RF Air Protocol | EPC Class1 Gen2 / ISO 18000-6C |
| Dimensions & Weight | 112.5(W)x78(H)x17(13)(D)mm(Including Barcode Module) |
| Power | 3.7V 2,100mAh, Li-Polymer Battery (Gallaxy S3 LTE Battery) |
| Charge | USB Charge (Micro USB Connector) |
| Reading Distance | 1.5~2m (based on Alien G-Tag) |
| Battery Life Time | General Over 12hours (Depend on Working Condition) Continue 4hours / Stand by Over 4months |
Barcode Specification
| Image Sensor | CMOS Sensor. 8-bit grayscale, Camera Scan Engine |
|---|---|
| Viewing Angle | Wide ±53°, Standard ±40° |
| Directions | 360°, Omni-directional |
| Sympologies | 1D, 2D, QR, |
• It will be changed without advance notice.
